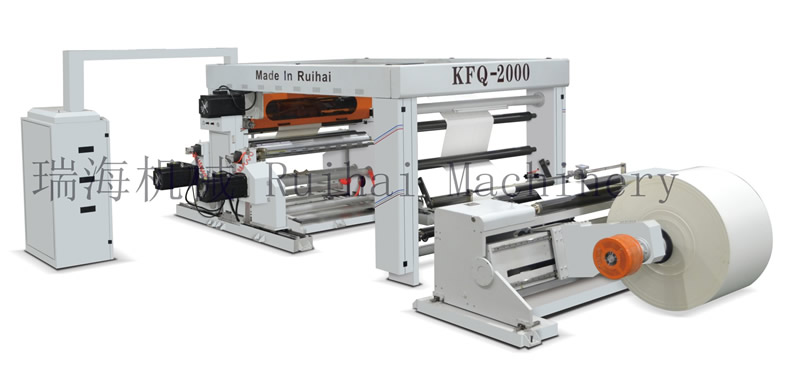

KOF Bare Frame Style Full Automatic High Speed Slitting And Rewinding Macheine


Name：KOF Bare Frame Style Full Automatic High Speed Slitting And Rewinding Macheine
No：KOF

Performance and Characteristics
This machine is used for slitting and rewinding various large rolling materials such as paper,(kraft paper,cellophane paper,bill paper),double-face adhesive tape,PVC,plastic mater ,etc.
1.This machine use PLC controller, automatic taper tension,central surface reeling.
2.Frequency converter three motor vector control,keeping speedup and stable operation.It has the functions of automatic metering,automatic.
3.With A,B inflatable shaft structures for rewinging;Finished products are automatic loading and unloading.It adopts photoelectric automatic error correction adiustment system for unwinding,anomalistic materials will be easy slit.
4.Equipped with automatic waste paper inhaling blowing device.Automatic material loading by hydraulic system for unwinding.

Main Technical Parameters

Model

KOF-1300

FOF-1600

KOF-1800

Max.width of unwinding

1300mm

1600mm

1800mm

Max.diameter of unwinding

φ1600mm

φ1600mm

φ1600mm

Min.width of slitting

50mm (up to materials)

50mm  (up to materials)

50mm  (up to materials)

Max.diameter of rewinding

φ1500mm

φ1500mm

φ1500mm

Speed

10-350m/min

10-350m/min

10-350m/min

Total Power

48kw

50kw

50kw

power supply

380V/50Hz

380V/50Hz

380V/50Hz

Weight

10000kg

12000kg

13000kg

Overall dimension (LxWxH)

7500x3500x2200(mm)

7500x3700x2200(mm)

7500x3800x2200(mm)
