Performance and Characteristics

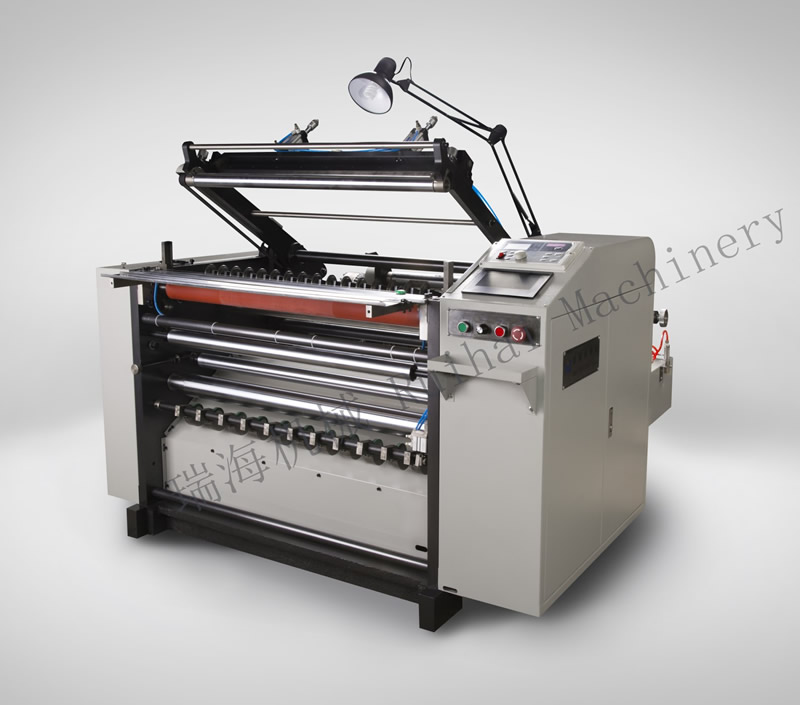

This machine is suitable for slitting fax paper with different gage, cash paper,billpaper film, self-adhesive,trademark, various paper (≤150 g/m2).
This machine is in the style of surface rewinding, which has the functions of easy operation, high-precision, rewinding trimly, with frequency converter timing device, photoelectric error-correction device, meter/count display as well as auto stop working. It's the advanced equipment for slitting in the domestic and overseas market.
Main Technical Parameters
| Model |
CZFQ-700 |
CZFQ-900 |
|
Max. diameter of unwinding |
￠600mm |
￠600mm |
|
Max. width of slitting |
700mm |
900mm |
|
Max. diameter of rewinding |
￠100mm |
￠100mm |
|
Speed |
12-120m/min |
12-120m/min |
|
Total power |
5.5kw |
5.5kw |
|
Weight |
1500kg |
1700kg |
|
Overall dimension(L×W×H ) |
2000×1700×1100(mm) |
2000×1900×1100(mm) |
