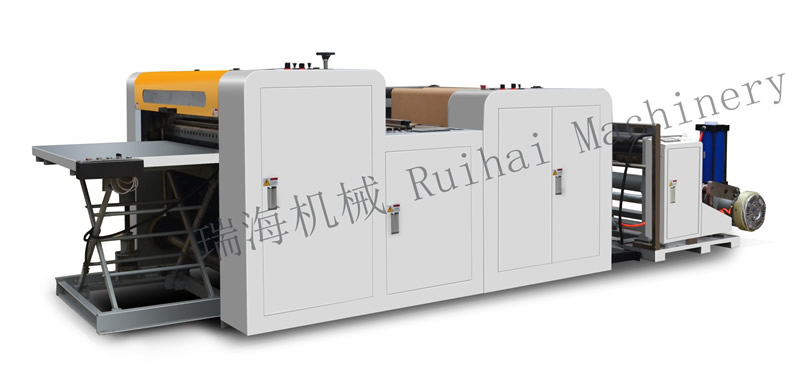

HQJ-D Microcomputer High-precision Crosscutting Machine (With Vertical Cutting)



Name：HQJ-D Microcomputer High-precision Crosscutting Machine (With Vertical Cutting)
No：HQJ-D

Performance and Characteristics

This machine is suitable for cutting big rolling packaging materials such as paper, PVC PET film paper- plastic, multicolor laminated material, etc.
It adopts servo motor (or step motor) for controlling constant-length cutting. It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric, gas together, it has the functions of easy operation, high precision, good stability, low noise. (Pneumatic auto loading device is optional) This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder tension control, can be cutted vertically, adopt blower to get rid of waste.

Main Technical Parameters

Model

HQJ-800D

HQJ-1100D

HQJ-1400D

HQJ-1600D

Max diameter of material

￠1400mm

￠1400mm

￠1400mm

￠1400mm

Max. width of cutting

800mm

1100mm

1400mm

1600mm

Longitudinal slitting width

50mm

50mm

50mm

50mm

Length of cutting

20-1200mm

20-1200mm

20-1200mm

20-1200mm

Precision of fixed length

±0.2mm

±0.2mm

±0.2mm

±0.2mm

Speed

10-150times/min

10-150times/min

10-150times/min

10-150times/min

Total Power

7.5KW

7.5KW

10KW

10KW

Weight (approx.)

1200kg

1700kg

2100kg

2500kg

Overall dimension(L×W×H)

5000×1600×1200(mm)

5000×1900×1200(mm)

5500×2200×1200(mm)

5500×2500×1200(mm)
